Sliding Placon Roller Track For Rack System
Description:
With high strength stainless steel, any type of structure can be
easily and quickly assembled without further surface treatment to
ensure compatibility with a particular production line.Mainly used
for transportation and storage systems
It can also be used as sliding rail, guardrail and guide rail
device, with good rolling performance and low cost.
The roller is made of high quality thermoplastic with low friction
coefficient and good impact resistance.
It has the advantages of long service life, acid and alkali
resistance and moisture resistance.
Parameter:
| Product Name | Sliding Placon Roller Track For Rack System |
| Place of origin | Zhejiang, China (Mainland) |
| Color | customized |
| Diameter | Customized |
| Frame material | 201 or 304 stainless steel |
| Key word | Roller, conveyor roller, conveyor roller assembly, conveyor roller
manufacturing, conveyor roller design, conveyor roller parts.
roller track, fluency strips, conveyor rail. |
| Roller material | ABS |
| Application | Conveyor system, storage system, |
| Feature | Flexible/movable/redirection/transmit/easy to replace |
| Shaft material | Galvanized |
| Loading capacity | 4kg-10kg/roller |
| Length | Customized |
| Model | Galvanized steel frame (W&H mm) | Galvanized gold thickness (mm) | PE roller size (mm) | Roll-shaft spacing (mm) | Single load (kg) | Bearing (kg) | Total height (mm) |
| 40X33 | 40*33 | 0.8*1.0 | φ32*22.5 | 36 | 10 | 100 | 45 |
| 60X33 | 60*33 | 0.8/1.0 | φ30*42 | 36 | 30 | 300 | 44 |
| 60X25 | 60*33 | 0.8/1.0 | φ30*42 | 36 | 30 | 300 | 44 |
| 85X33 | 85*33 | 1.5 | φ45*54 | 100 | 30 | 300 | 45 |
| QN85X33 | 85*33 | 1.5 | φ34*10 | 25 | 30 | 300 | 45 |
| 44X33 | 44*33 | 1.5 | φ38*25 | 45 | 20 | 80 | 44 |
| 41X35 | 41*35 | 1.5 | φ28*25 | 30/45/60 | 10 | 100 | 41 |
| 30X22 | 30*22 | 1.5 | φ13*14 | 15/30 | 4 | 50 | 24 |
Advantages of aluminum profiles:
1. Cost advantage
• No mechanical machining necessary request
• Errors in construction or assembly can be rectified more easily
2. Simple
• Just order and assemble using standard aluminum profiles and
accessories for any structures.
3. Compatibility
• MAT aluminum profiles could be compatible , easy to replace.
4. Appearance
• Connection not visible from outside and therefore not a
disruptive factor when using accessories
5. Resistance
• Aluminum Profile cross section is not weakened by drill holes or
milled slots .
• Aluminum Profiles are secured against twisting by the connecting
technology .
6. Tools
• Simple tools are sufficient for assembly aluminum profiles and
related accessories
7. Special request
• Aluminum profile can be cut to specific length as you need
• Aluminum profile can be drilled and pre-assembled
8. Service
• Modular Staff can convert any current using brand to Modular
aluminum profile and related accessories
• CAD product library available for use as a construction.

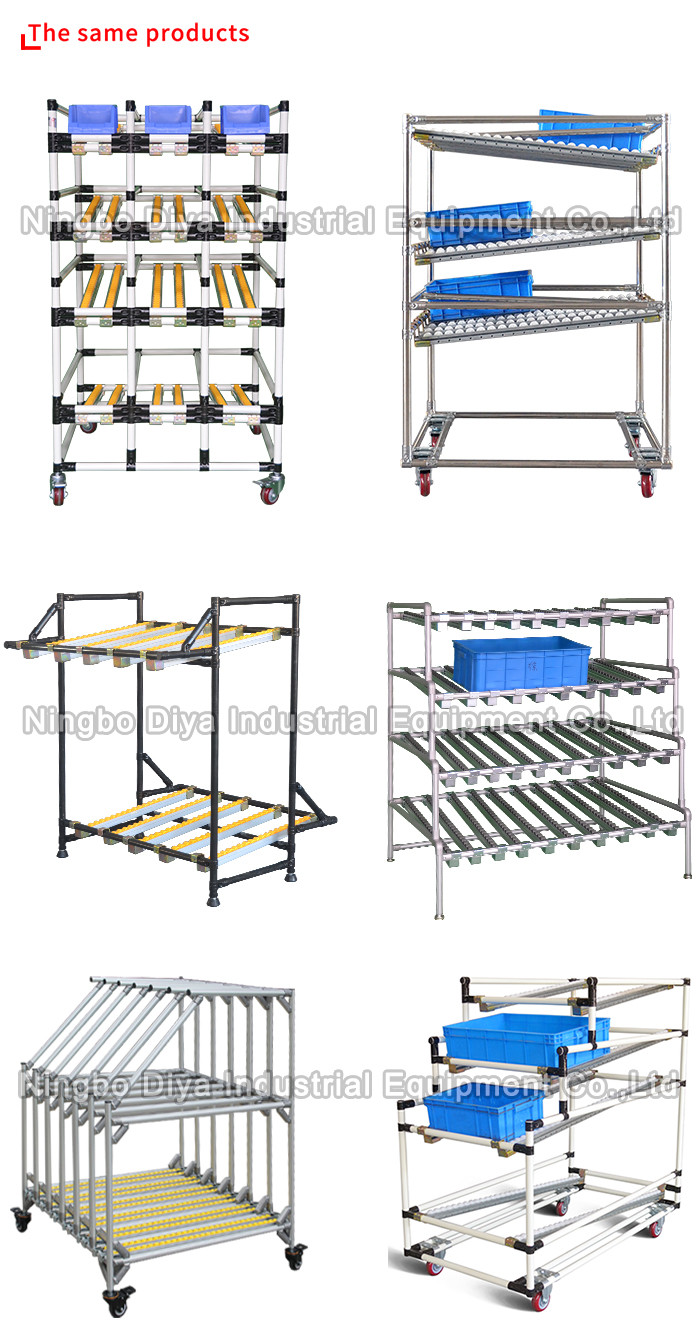

Application:
1. sliding shelf
2. slide way shelf
3. carton flow rack & shelves
4. gravity flow rack
5. FIFO flow storage etc.
6. Our products are widely used in the conveyor of production of
light industry as below:
